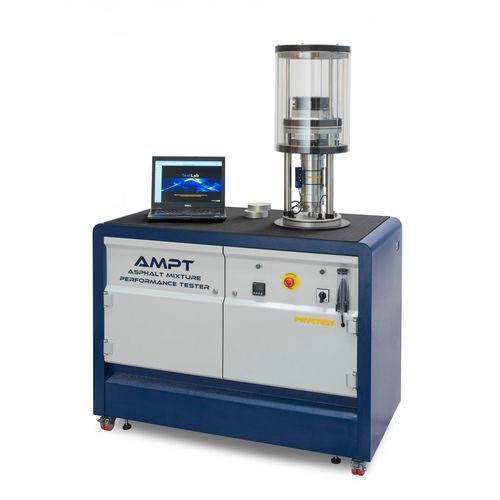

Performance testing device B200L

computer-controlledfor asphaltindustrial

Compact, fully self contained, precision engineered unit The Pavetest AMPT is a servo-hydraulically controlled testing machine specifically designed to perform the three asphalt tests developed under NCHRP Projects 9-19 and 9-29: Dynamic Modulus, Flow Number and Flow Time. It is also the prescribed equipment in AASHTO T378-17 Standard Method Test for determining the Dynamic Modulus and Flow Number for Hot Mix Asphalt (HMA) using the Asphalt Mixture Performance Tester (AMPT). In addition, the Pavetest AMPT can also perform AASHTO TP107-17 for determining the Damage Characteristic Curve and Fatigue Analysis Parameters of Asphalt Mixtures in the AMPT, Indirect Tensile Dynamic Modulus, Incremental Repeated Load Permanent Deformation, Semi-circular bend, and Overlay Testing of Asphalt Mixtures. The Pavetest AMPT is underpinned by Pavetest’s leading edge CDAS digital controller, TestLab software and a full complement of accessories, hardware and software in perfect unison. The machine includes: 8 Channel Control and Data Acquisition System (CDAS) and TestLab software 30 mm Actuator LVDT Load cell (+/- 20 kN) Pressure transducer (+/- 300 kPa) Temperature transducer (-80 °C to + 80 °C) Magnetically mounted on-specimen LVDT 105 mm bottom loading platen 105 mm top loading platen Technical Specifications
