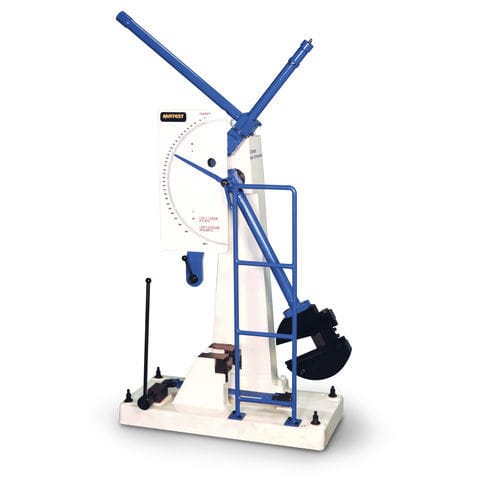

Motorized pendulum impact tester H06 series

for Charpy testing

The Charpy impact test determines the amount of energy absorbed by a material during fracture. The tester is equipped with a falling pendulum hammer, able to break, with a single blow, a sample carved in the middle and positioned on two supports. The test is carried out on a CHARPY sample in order to check the energy absorbed during the impact, which is measured in JOULE. The value stands for the impact strenght of the material (resilience). Cast iron frame Pendulum with hardened knife Brake device to stop the pendulum Impact energy 300J with 2J graduation Falling angle: 140°, Pendulum mass kg 21.3 Impact speed: 5.187 m/s Supplied complete with knife-edge to perform the test as per ASTM Standard It cannot be sold in CE markets Dimensions: 500x1000x1820 mm Weight: 400 kg approx
