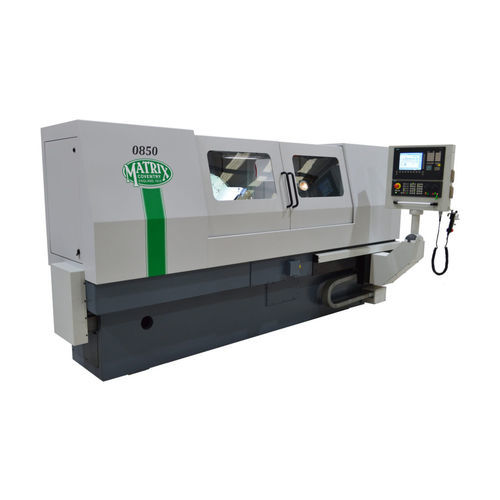

External thread grinding machine TE-0850CNCdigital
Add to favorites
Compare this product
Characteristics
- Type
- external thread
- Control type
- CNC, digital
- Spindle speed
Max.: 2,500 rpm
(15,708 rad.min-1)Min.: 500 rpm
(3,142 rad.min-1)- Power
8.8 kW
(11.96 hp)- Distance between centers
Max.: 800 mm
(31 in)Min.: 0 mm
(0 in)- X travel
360 mm
(14.17 in)- Y travel
950 mm
(37.4 in)- Speed
Max.: 0.12 m/s
(0.39 ft/s)Min.: 0 m/s
(0 ft/s)- Machine weight
10,000 kg
(22,046.23 lb)
Description
<br><br>Component Diameter<br> <br><br>10 - 350mm<br><br>Grinding Diameter<br> <br><br>10 - 350mm (Component Dependant)<br><br>Length Between Centres<br> <br><br>800mm (Max)<br><br>Length of Grinding Between Centres<br> <br><br>800mm (Component Dependant)<br><br>Lead Range<br> <br><br>0 - 300mm<br><br>CNC Control:<br><br>CNC Type<br> <br><br>Siemens 840 DSL<br><br>HMI<br> <br><br>Sinumerik Operate + Matrix Interface<br><br>Servo System<br> <br><br>Sinamics S120 (Digital)<br><br>X Axis (Diameter):<br><br>Slide Travel<br> <br><br>360mm<br><br>Travers Speed<br> <br><br>0 - 7 M/Min (Digital Servo)<br><br>Including Linear Scale<br> <br><br>Dual Position Feedback System<br><br>Z Axis (Length):<br><br>Slide Travel<br> <br><br>950mm<br><br>Travers Speed<br> <br><br>0 - 7 M/Min (Digital Servo)<br><br>Including Linear Scale<br> <br><br>Dual Position Feedback System<br><br>C Axis (Work Head):<br><br>Torque<br> <br><br>154 Nm<br><br>Travers Speed<br> <br><br>0.4 - 120 RPM (Digital Servo)<br><br>Rotary Encoder<br> <br><br>High Position Feedback System<br><br>Wheel Head:<br><br>Grinding Spindle Power<br> <br><br>8.8 Kw @ 2000 RPM<br><br>Programmable Speed<br> <br><br>500 - 2500 RPM (Digital Servo)<br><br>Automatic Balancing<br> <br><br>Built In Dynamic Balancing System<br><br>Standard Wheel Size<br> <br><br>13mm or 25mm<br><br>Dressing System:<br><br>Work Head Mounted<br> <br><br>Fixed (Adjustable as Option)<br><br>Dresser Speed<br> <br><br>0 - 6000 RPM (Bi - Directional)<br><br>Feed Rate<br> <br><br>Programmable / Macro Calculated<br><br>Media<br> <br><br>Disk / Roll / Single Point Diamond<br><br>Coolant System:<br><br>Capacity<br> <br><br>650l (Standard)<br><br>Features<br> <br><br>Temparature Control, Seperator, Centrifuge<br><br>Machine Characteristics:<br><br>Approx Gross Machine Weight<br> <br><br>10,000 Kg<br><br>Approx Floor Area<br> <br><br>5100mm x 4200mm (With Coolant System)<br><br>
