Synchronous motor A-max 19 series
DC24 V12 V

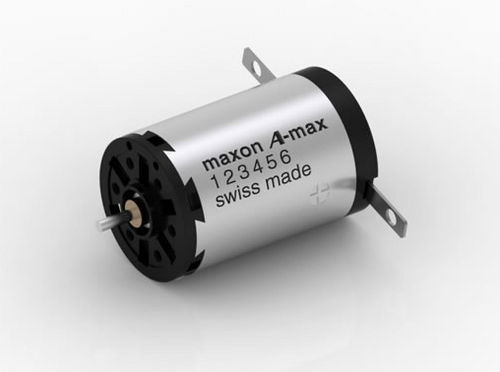

Synchronous motor - A-max 19 series - maxon - DC / 24 V / 12 V
Synchronous motor - A-max 19 series - maxon - DC / 24 V / 12 V
Synchronous motor - A-max 19 series - maxon - DC / 24 V / 12 V - image - 2
Synchronous motor - A-max 19 series - maxon - DC / 24 V / 12 V - image - 3
Synchronous motor - A-max 19 series - maxon - DC / 24 V / 12 V - image - 4
Synchronous motor - A-max 19 series - maxon - DC / 24 V / 12 V - image - 5
Add to favorites
Compare this product
Go to the maxon website for more information

Characteristics

Type
synchronous, DC
Voltage
24 V, 12 V, 18 V, 6 V, 3 V
Configuration
compact, ironless
Other characteristics
low-inertia
Power

1.5 W, 2.5 W
(0 hp, 0 hp)

Torque

Max.: 0.00402 Nm
(0.002965 ft.lb)

Min.: 0.000759 Nm
(0.00056 ft.lb)

Rotational speed

Max.: 12,400 rpm
(77,911.4978 rad.min-1)

Min.: 6,130 rpm
(38,515.9259 rad.min-1)

Diameter

19 mm
(0.75 in)

Description

maxon A-max motors are high-quality DC motors equipped with powerful AlNiCo permanent magnets and ironless maxon winding. Their simple engineering allows primarily automated production which translates to an economical price. Configuring for your system is facilitated by the broad selection of gears, sensors and controllers. Six motor sizes are available.
