Brushless motor A-max 32 series
DC24 V12 V

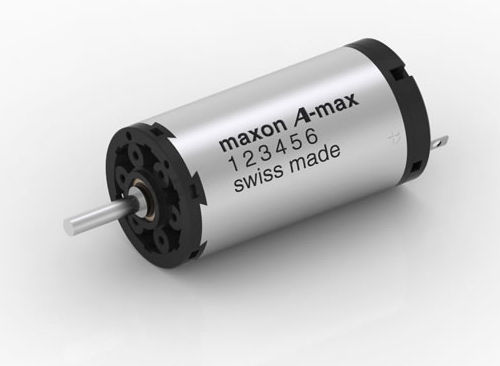

Brushless motor - A-max 32 series - maxon - DC / 24 V / 12 V
Brushless motor - A-max 32 series - maxon - DC / 24 V / 12 V
Brushless motor - A-max 32 series - maxon - DC / 24 V / 12 V - image - 2
Brushless motor - A-max 32 series - maxon - DC / 24 V / 12 V - image - 3
Brushless motor - A-max 32 series - maxon - DC / 24 V / 12 V - image - 4
Add to favorites
Compare this product
Go to the maxon website for more information

Characteristics

Type
brushless, DC
Voltage
24 V, 12 V, 48 V, 18 V, 6 V, 36 V, 9 V
Configuration
coreless, ironless
Power

15 W, 20 W
(0.02 hp, 0.03 hp)

Torque

Max.: 0.0455 Nm
(0.033559 ft.lb)

Min.: 0.035 Nm
(0.025815 ft.lb)

Rotational speed

Max.: 6,460 rpm
(40,589.3771 rad.min-1)

Min.: 3,870 rpm
(24,315.9271 rad.min-1)

Diameter

32 mm
(1.26 in)

Description

The Maxon Motor EC 9.2 flat is well known for its compact size of Ø10 mm capable on performing well in tight spaces. It is a sensorless and brushless EC motor with an output watt of 0.5 that provides favorable torque characteristics, high power and speed range assuring its user long-time convenience for its unsurpassed service life and performance.
Go to the maxon website for more information

Other maxon products

A-max Program
