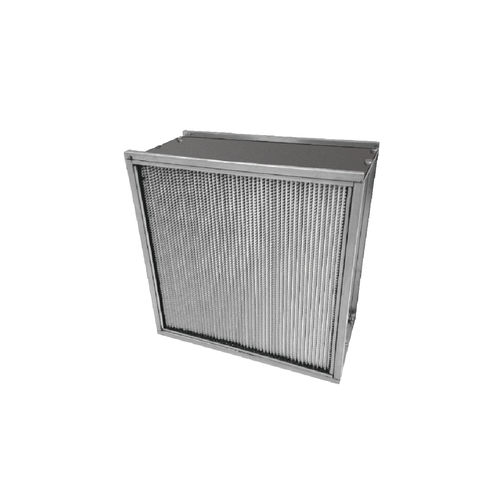

HEPA filter M-HIairfiberglassdust
Add to favorites
Compare this product
Characteristics
- Designed for
- air
- Filtration element
- fiberglass
- Applications
- dust
- Material
- stainless steel, galvanized steel, aluminum
- Mounting
- flange
- Norms
- H13, H14
- Other characteristics
- HEPA, low pressure
Description
HEPA FILTER WITH SEPARATOR
PRODUCT HIGHLIGHT:
Ultra fine fiberglass filter media
Aluminum casing/ galvanized iron casing
Aluminum separator, optional flangeless frame, single flange frame or double flange frame, flange thickness 20mm
High efficiency, low pressure drop, high dust loading capacity
Efficiency (EN1822): 99.95%(H13)、99.995% (H14)
PRODUCT FEATURES:
Continuous Operating Temperature : Max. 80°C
Operating Relative Humidity : ≤100 (%RH)
Media Material : Fiberglass
Frame Material : Galvanised Steel / Aluminium / Stainless Steel / Plywood
Frame Thickness : 80mm, 95mm, 150mm, 220mm, 292mm
Frame Header : Non-Header / Single Header / Double Header (Thickness: 20mm)
Efficiency : H13, H14 (EN1822:2009)
Separator Material : Corrugated Aluminium / Paper
Sealant Material : Polyurethane Glue
