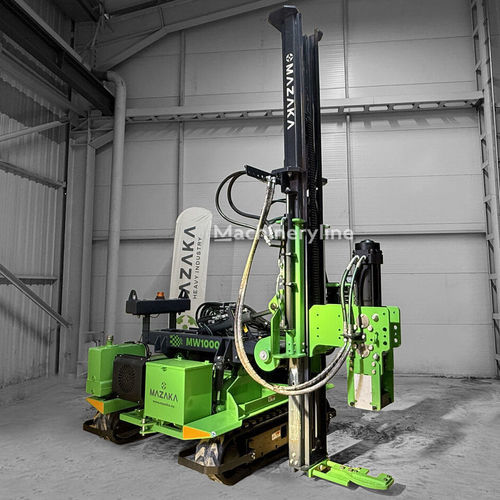

Hydraulic pile driver MW1000

4-cylinderfor photovoltaic applicationsfor highway guardrails

Product description
Mazaka MW1000 pile driving machine, used and in good condition, designed for efficient and precise pile installation in applications such as solar parks, highway guardrails, vineyard supports and general construction sites.

General information

• Operating hours: 811 h
• Year of manufacture: 2023
• Condition: used
• Color: green

Optional equipment

• Screwing attachment
• DTH and auger drilling attachment
• Pile extraction
• GPS / GNSS
• Remote control
• Automatic levelling

Engine

• Brand / model: Yanmar Stage V / 4TNV88C
• Type: inline
• Power: 35 kW (47.62 hp) — alternative: 42 kW for Stage 3
• Fuel: diesel
• Cylinders: 4
• Emission class: Euro 5

Hammer

• Impact energy: 1,200 J
• Working pressure: 120 bar
• Impact frequency: 570 – 1,180 blows/min

Hydraulic system

• Oil flow: 50 – 100 l/min
• Oil pressure: 180 bar
• Hydraulic oil tank: 150 l

Travel / Mobility

• Speed (low / high): 2.2 / 4 km/h (also listed as 2.24 km/h)
• Gradeability: 20%
• Side slope (kerb work): 10°
• Track type: rubber

Dimensions and weight

• Transport width (A1): 2,280 mm
• Transport height (A2): 2,550 mm
• Transport length (A3): 2,950 mm
• Machine width (A1): 2,280 mm
• Machine height (A4): 4,400 mm
• Machine length (A5): 3,110 mm
• Mast height (A6): 4,500 mm
• Net weight: 4,300 kg (other sources: 4,350 kg)

Other technical information

• Drilling / piling depth: 4.5 m
• Overall dimensions (L × W × H): 2.95 m × 2.28 m × 2.55 m
• Fuel tank capacity: 60 l
• Rated speed: 2,200 rpm (stated)
• DPF filter: standard on Stage 5 engines
• Maneuvering / movement: no turning; tilt: 10°; mast forward tilt: 12°; mast back tilt: -63°

Technical specifications

• Brand: Mazaka
• Model: MW1000
• Type: pile driving machine
• Year: 2023
• Operating hours: 811 h
• Net weight: 4,300 kg
• Rated hammer energy: 1,200 J
• Piling depth: 4.5 m
• Speed: 2.24 km/h (page also shows 2.2 / 4 km/h)
• Overall dimensions: 2.95 m × 2.28 m × 2.55 m
• Fuel tank: 60 l
• Engine: Yanmar Stage V / 4TNV88C, 35 kW (47.62 hp)
• Hammer frequency: 570 – 1,180 blows/min
• Hydraulic flow / pressure: 50 – 100 l/min / 180 bar; hydraulic tank: 150 l
• Transport dimensions: width A1 2,280 mm, height A2 2,550 mm, length A3 2,950 mm
• Mast / machine dimensions: machine height A4 4,400 mm, machine length A5 3,110 mm, mast height A6 4,500 mm
• Color: green
• Condition: used
• Machineryline ID: PY50515
• Price shown on page: 2.611.000 TL (excl. VAT) / €49,500
