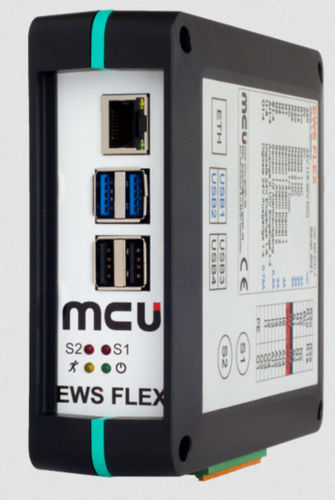

Data analysis system EWS FLEX

automatic

With EWS FLEX BOX, MCU offers an unprecedented variety of solutions. Thanks to its unique combination, the system can be adapted to a wide range of requirements. Connection of up to 2 hybrid sensors (3D acceleration MEMS + piezo single-axis); Collision monitoring with fast stop; definition of limit values via the NC program; System communication via OPC UA: tool limits; readout of machine data (configurable in the editor); Graphic display/analysis in the generic user interface (integrated in the control system) Modules available: Machine history logbook: Collisions, vibration RMS, alarms, warning messages, etc. Collision prevention: Avoidance of collisions as a result of operating errors Vibration history: Storage of signal history for each collision alarm event Spindle Check-Up: Accumulation of spindle operating time for both vibration and temperature ranges 3 axes real-time data: Visualization of spindle vibrations (3 axes) during machining process Technical data: Single-board computer with Linux, 4GB Ram, 32GB hard disk Up to 2 sensors MODBUS RTU 6 digital inputs 24V 4 semiconductor outputs 1 fast collision output directly from sensor 3 changeover contacts for 3 limit values (1x dual-channel for quick stop via emergency stop circuit of machine) RJ45 socket for TCP/IP connection to controller or PC
