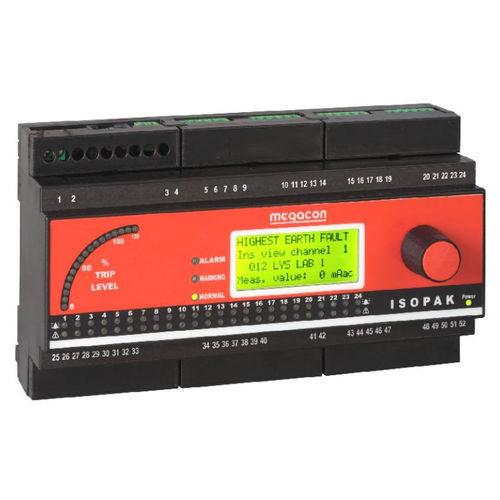

Voltage protection relay ISOPAK1xx series
insulationdigitalDIN rail

voltage protection relay
voltage protection relay
Add to favorites
Compare this product

Characteristics

Measured/monitored value
voltage, insulation
Other characteristics
digital, DIN rail
Tripping current

Min.: 4 mA

Max.: 20 mA

Description

UNIVERSAL AC EARTH FAULT PROTECTION SYSTEM 24 channel earth leakage monitoring of LIVE AC networks Tailored to any voltage or current range Reads each channel's RMS leakage. Range 100mA to 10A Set parameters and view on unit screen Optional supervision module and slave unit Healthy/Warning/Alarm and Supervision C/O relay outputs "Highest up" 4-20mA signal & RS-485 Modbus RTU outputs Description The digitally controlled ISOPAK1xx adds to Megacon's wide range of ISOGUARD products for insulation and earth fault monitoring and protection. The ISOPAK1xx technology is also used in Megacon's IsoMedical and IsoSubsea systems for monitoring of ultra-safe AC supply systems in hospital and subsea installations respectively. ISOPAK1xx can be configured for operation in FLOATING and GROUNDED single phase, 3-wire and 4 wire three phase AC networks. The measuring range is factory pre-programmed.
