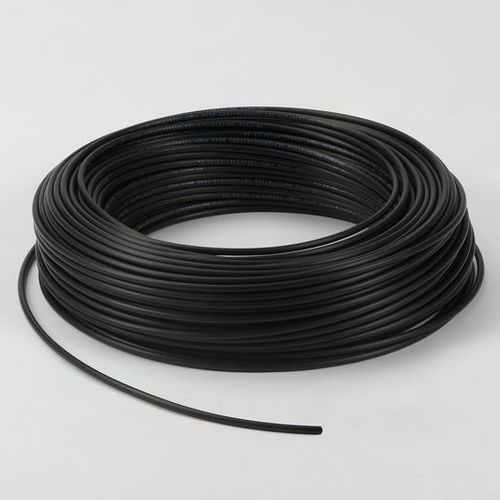

Compressed air hose MS-TPU seriespolyurethaneself-extinguishing
Add to favorites
Compare this product
Characteristics
- Use
- for compressed air
- Material
- polyurethane
- Other characteristics
- self-extinguishing
- Inner diameter
Min.: 2.5 mm
(0.098 in)Max.: 10 mm
(0.394 in)- Outer diameter
Min.: 6 mm
(0.236 in)Max.: 14 mm
(0.551 in)- Pressure
Min.: 11 bar
(159.542 psi)Max.: 27 bar
(391.602 psi)- Temperature
Min.: -40 °C
(-40 °F)Max.: 60 °C
(140 °F)
Description
FEATURES
Polyether Polyurethane, selfextinguishing to UL94 V2. Product with excellent flexibility and resistance to abrasion. Hardness 58 shoreD.
TEMPERATURE
Products of the series MS-TPU can be used in a temperature range from -40°C to 60°C.
TOLLERANCES
± 0,07 on wall thickness
± 0,07 on oØ up to Ø 12 mm
± 0,1 on oØ from Ø 14 mm
± 0,5% on weight
