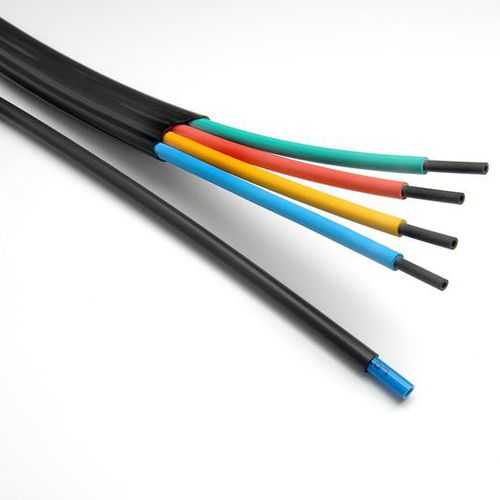

Chemical product hose DS-PA series

for compressed airpolyurethanePA12

FEATURES Polyamide 12 coated in polyurethane fireproof to UL94 V0. The external sheath offers greater protection from sparks and welding slag and can easily be removed for use with push-in fittings using the appropriate tool. PA12 hardness 64 shoreD. PU hardness 85 shoreA. TEMPERATURE Products of the series DS-PA can be used in a temperature range from -40°C to 80°C. TOLLERANCES ± 0,07 on wall thickness ± 0,07 on oØ up to Ø 10 mm ± 0,1 on oØ from 12 to 22 mm ± 0,5% on weight APPLICATIONS Industrial automation; Vacuum equipment; Machine tool; Robotics; Low temp below 10; Chemical resistance; Low permeability; Petrolium based chemical transfer; Hydrolysis resistance;
