Gyratory crusher stationarysand productionhorizontal-shaft
Add to favorites
Compare this product
Characteristics
- Technology
- gyratory
- Mobility
- stationary
- Other characteristics
- secondary, for mineral material, fine, sand production, horizontal-shaft
- Capacity
Min.: 3,000 kg/h
(6,613.9 lb/h)Max.: 8,000 kg/h
(17,637 lb/h)- Motor power
11 kW
(14.96 hp)- Opening height
20 cm
(7.9 in)- Opening lenght
40 cm
(15.7 in)
Description
Product overview

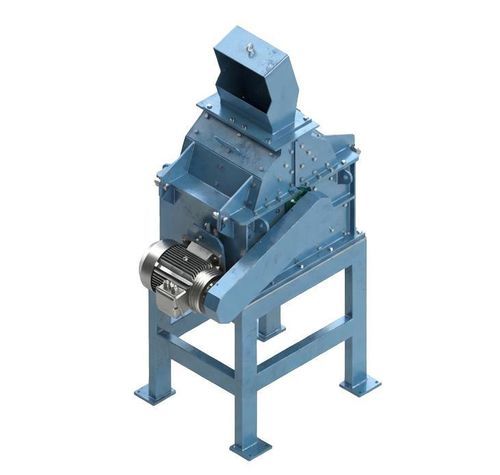

Ideal for secondary crushing, the CRUNCH hammer mill is a horizontal-axis machine equipped with rotating hammers. It delivers a high degree of size reduction when fragmenting natural stone, concrete and low- to medium-hardness aggregates. Unlike STARK jaw crushers, CRUNCH is designed to produce a very finely ground product suitable for sand and fine aggregate production.
Working principle and structure
The hammers are manufactured in wear-resistant Hardox steel and their position can be adjusted to optimize wear life. Material is fed through the upper inlet (by hand or conveyor). Hammer speed and arrangement ensure material is repeatedly impacted until it is reduced enough to pass through the screening grid beneath. The finished product discharges through the lower hopper into a collection container.
Applications
Characteristics / Technical specifications
Ideal for secondary crushing, the CRUNCH hammer mill is a horizontal-axis machine equipped with rotating hammers. It delivers a high degree of size reduction when fragmenting natural stone, concrete and low- to medium-hardness aggregates. Unlike STARK jaw crushers, CRUNCH is designed to produce a very finely ground product suitable for sand and fine aggregate production.
Working principle and structure
The hammers are manufactured in wear-resistant Hardox steel and their position can be adjusted to optimize wear life. Material is fed through the upper inlet (by hand or conveyor). Hammer speed and arrangement ensure material is repeatedly impacted until it is reduced enough to pass through the screening grid beneath. The finished product discharges through the lower hopper into a collection container.
Applications
- Secondary crushing of low- and medium-hardness stone
- Crushing natural stone, concrete and aggregates
- Production of finely ground product and sand
Characteristics / Technical specifications
- Feed opening: 400 mm x 200 mm
- Maximum feed size: 70 mm
- Motor: 11 kW
- Mill speed: 1000 rpm
- Feed capacity: 3–8 tons/hour
- Hammer material: Hardox wear-resistant steel; adjustable position to optimize consumption
