3-axis CNC machining center MC 304 ARIEL MMIverticalfor aluminum
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Machined material
- for aluminum
- X travel
7,460 mm
(294 in)- Y travel
1,460 mm
(57 in)- Z travel
620 mm
(24 in)- Rotational speed
24,000 rpm
(150,796 rad.min-1)- Power
8.5 kW
(11.56 hp)
Description

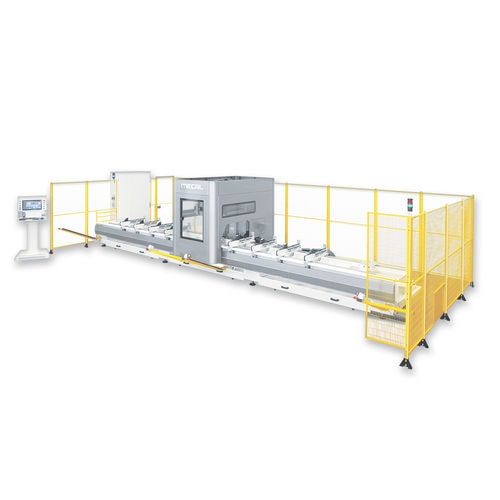

MC 304 ARIEL MMI
3 AXIS CNC FLOOR TYPE VERTICAL SPINDLE MACHINING CENTRE.
MMI = version provided with a device activated by a pneumatic/electronic combination dedicated to the automatic contemporary movement of the clamps.
3 axis (X, Y, Z) managed by CNC.
By means of dedicated tools it’s suitable for working on 5 sides of profiles.
The strong base formed by tubulars guarantees the fundamental structural rigidity of the machine.
Catalogs
No catalogs are available for this product.
See all of MECAL‘s catalogs
