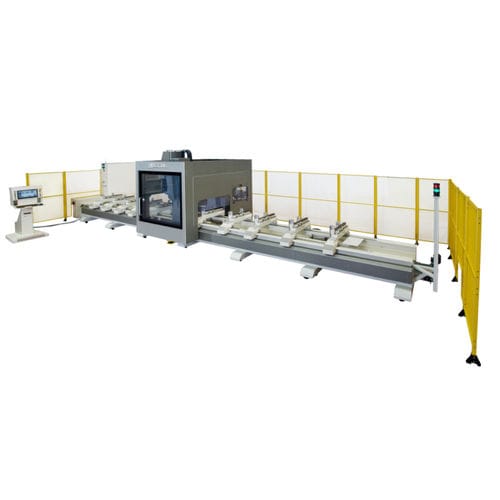

5-axis CNC machining center MC 302 GEOS – 5 MDTverticalfor aluminumfor PVC
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Machined material
- for aluminum, for PVC
- Applications
- drilling, cutting
- Other characteristics
- milling
- X travel
8,600 mm, 10,600 mm, 12,600 mm
(339 in, 417 in, 496 in)- Y travel
1,570 mm
(62 in)- Z travel
740 mm
(29 in)- Rotational speed
24,000 rpm
(150,796 rad.min-1)- Power
10 kW
(13.6 hp)
Description
5 AXIS CNC FLOOR TYPE VERTICAL SPINDLE MACHINING CENTER.
5 axis (X, Y, Z, C, A) managed by CNC.
It’s designed for working aluminium profiles of big dimensions.
MDT means “Cutting Module”. It is a system to obtain multiple pieces derived from a single profile bar. The clamps used are equipped with independent drive. It is expected that each workpiece is held by at least two vices; once cut, the segment obtained is automatically moved along the longitudinal axis of the machine, up to reach a given position.
Suitable for milling, drilling, tapping and cutting on the 5 sides of aluminium and light alloys profiles.
