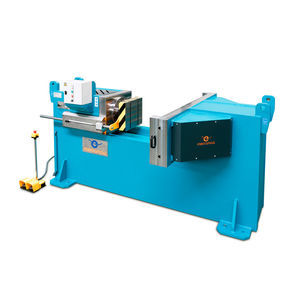

hydraulic press / compression / custom / double-action
PHH180

{{requestButtons}}

Characteristics

  • Operation:

    hydraulic

  • Function:

    compression

  • Other characteristics:

    custom, double-action, horizontal

  • Opening:

    850 mm

  • Force:

    1,765.2 kN

Description

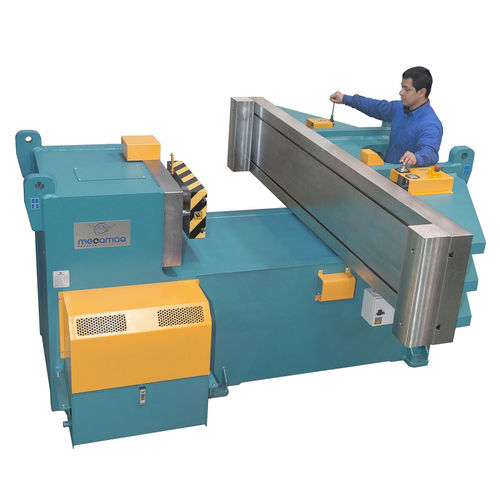

The machine has 180 Tons of power, with 400 mm stroke of the cylinder. Its lower (3000 x 600 mm) and upper plate (600 x 300 mm) have T grooves M16, with upper plate guided by two cylindrical columns of 40 m diameter with bronze sleeves. The maximum opening between the plates is 850 mm. The hydraulic group operates with two speeds - approximation (10 mm/sec) and work speed (3 mm/sec) which change by pressure or position. With 7.5 HP (5.5 Kw) engine power and pressure regulator. The machine is activated by means of manual distribution with three different positions.
