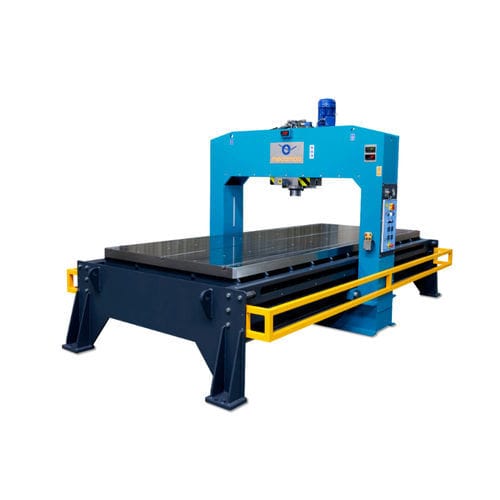

Hydraulic press PCD-P100 5929motorizedwith movable tabledigital
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic, motorized
- Structure
- with movable table
- Other characteristics
- digital
- Opening
450 mm
(18 in)- Stroke
400 mm
(15.748 in)- Table width
1,500 mm
(59 in)- Table length
3,700 mm
(146 in)- Max. pressure
300 bar
(4,351 psi)- Working speed
4 mm/s
- Weight
7,800 kg
(17,196 lb)- Overall width
2,300 mm
(91 in)- Overall height
2,400 mm
(94 in)
Description
Motorized movable cylinder
Motorized movable portal
Wireless control
Pressure/position digital readout.
Custom design.
Approximation speed 9mm/s.
Features
Hydraulic system speeds. - 2
Engine power (HP) - 4
Approximation speed (mm/s) - 9
Depth (mm.) - 4300
