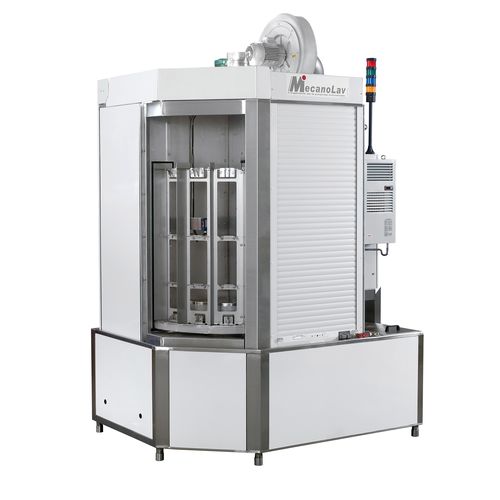

Multi-steps carousel parts washer
8 to 16 cleaning steps depending on production flow and cleaning process
Complete cycle in closed circuit: washing, rinsing, drying
High production rate
Precise indexing for robotic loading
CAD design and manufacturing of Workpiece carrier
Cleanliness standards | gravimetry – particle size
Useful dimensions can be adapted as needed
Made in France
8 to 16 cleaning steps
Carousel is based on the principle of a barrel.
The indexed step-by-step rotation performs successive cleaning / drying phases in separated modules.
Quantity of steps, rotation speed and treatment time in each station enables the system to meet your cleanliness requirements and production flow.
Robot friendly
En deux postes dédiés ou sur un seul et même poste, le chargement et le déchargement du Carrousel peut être réalisé manuellement ou par un robot.
Loading and unloading of the carousel can be done manually or by a robot, either at two dedicated stations or at one location.
Loading and unloading at the same station
Operator access protected by light curtains
Specific Workpiece carrier
A stable position is required to allow robotic loading.
The workpiece carrier is designed by our engineering department according to the part diversity to ensure an efficient cleaning and drying.
Particle size requirements
The environment of the machine is a key factor in achieving cleanliness requirements on complex and sensitive parts.
For this purpose, the carousel can be integrated into a clean room to meet the most stringent cleanliness standards.
