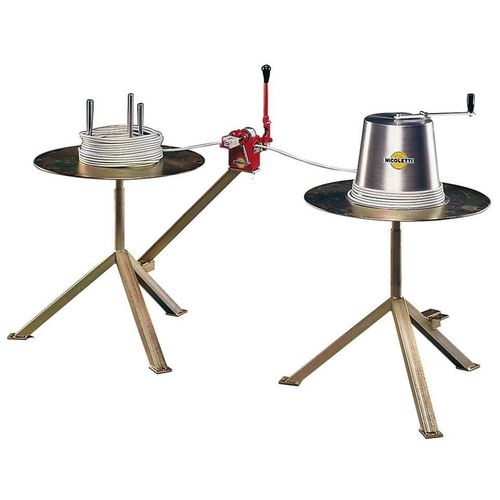

Cable coiler-uncoiler 02-03-OD

manual

Mainly for industrial use Sheet steel construction. Surface treatment: stove-enamelled counter, hot-dip galvanized uncoiler and coiler. Measures cables up to Ø 20mm Cuts cables max. Ø 15mm Measuring tolerance ±1.5% Height (mm) - 970 mm Width (mm) - 700 mm Length (mm) - 700 mm Weight (kg) - 63 kg Coiler - Plate diameter (mm) - 700 mm Coiler - Plate height (mm) - 310 mm Coiler - Max. coil core diameter (mm) - 350 mm Coiler - Min. coil core diameter (mm) - 270 mm Uncoiler - Plate diameter (mm) - 700 mm Uncoiler - plate height (mm) - 250 mm Uncoiler - Max. coil core diameter (mm) - 320 mm Uncoiler - Min. coil core diameter (mm) - 80 mm Load capacity (kg) - 70 kg
