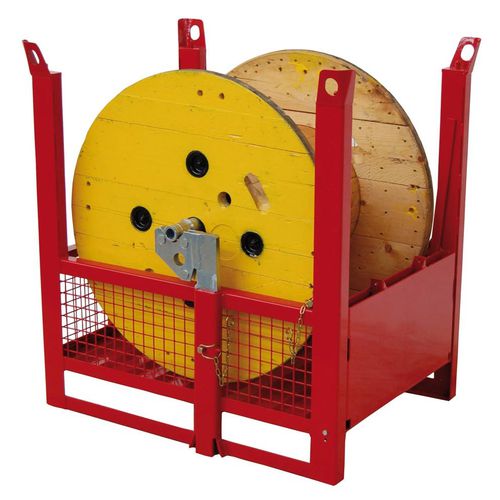

Handling materials handling system CONBOB12

for industrial usefor cables

Stackable drum payoff cage Mainly for industrial use and for cable laying Drum payoff cage. Galvanized steel structure. Handling options: Crane. Lift truck. Pallet truck Designed to be stacked up to four tiers high, always ready for payoff. Can be transported by truck, in two rows unstacked, always ready for payoff, even directly from the truck bed. Runs on radial ball bearings Height (mm) - 1520 mm Width (mm) - 1250 mm Length (mm) - 1465 mm Empty weight (kg) - 150 kg Drums - maximum diameter (mm) - 1200 mm Drums - Maximum width (mm) - 1000 mm Load capacity (kg) - 1500 mm Minimum bore diameter (mm) - 82 mm
