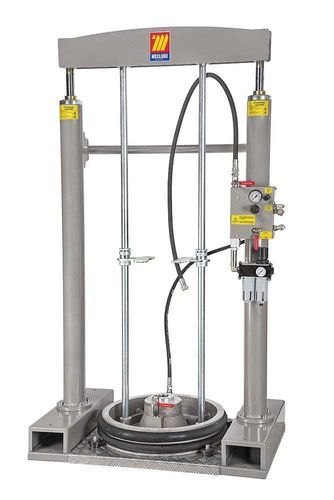

Pneumatic drum lifter 012-1200-030

twin-ramfor drumsfor industrial use

Product overview
Air-operated two-column lifter and press for grease and viscous media. With a dedicated 3-way control valve it raises and lowers the pump and follower plate, facilitating drum exchange for 180–220 kg drums. Recommended for high-viscosity greases and media (200 CPS to 500 ASTM). The follower plate is forced down by pressurised pneumatic cylinders to prevent air pockets in the grease bed and ensure continuous flow. It also assists suction by collecting grease from inner walls to the drum bottom.

Features
Equipped with follower plate for grease pumps with shank Ø 30 mm. Suitable for drums 180–220 kg. Designed for high-viscosity greases and media.

Article code
ART: 012-1200-030

Data sheet

• Minimum height: 1802 mm
• Maximum height: 2802 mm
• Maximum pressure: 8 bar
• Weight: 228 kg
• Drum capacity: 180–220 kg
• Viscosity: 200–500 ASTM (25°C)
• Pushing power: 4 bar - 450 kg / 6 bar - 650 kg / 8 bar - 870 kg

Technical characteristics

• Operation: Air-operated two-column lifter and press
• Control: 3-way control valve for lifting and lowering pump and follower plate
• Follower plate: Pressed down by pneumatic cylinders to avoid air pockets and flow interruption
• Recommended media: Grease and high-viscosity fluids (200 CPS to 500 ASTM)
• Drum capacity: 180–220 kg
• Shank diameter: Ø 30 mm (follower plate for grease pumps with shank Ø 30 mm)
• Minimum height: 1802 mm
• Maximum height: 2802 mm
• Maximum pressure: 8 bar
• Weight: 228 kg
• Pushing power: 4 bar - 450 kg / 6 bar - 650 kg / 8 bar - 870 kg
