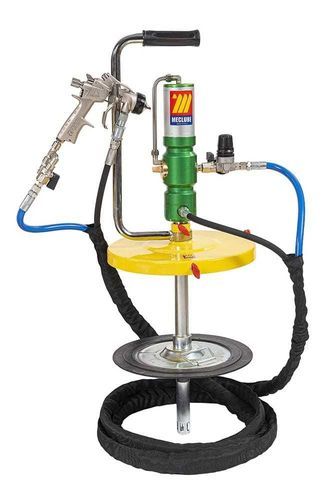

Grease sprayer 013-2000-020

pneumatic

Product
This air-operated grease sprayer kit enables spraying/nebulizing lubricating grease to facilitate application over large surfaces as a protective coating. Suitable for naval, industrial and construction use. The system combines a R=14:1 air-operated pump and a high-pressure spray gun capable of nebulizing grease up to NLGI 2.

Composed by

• Art.010-1036-000 Air-operated grease pump R=14:1
• Art.014-2170-000 Pressure regulator with connections
• Art.014-1095-000 Handle
• Art.014-1051-030 Lid Ø 320 mm
• Art.014-1062-030 Follower plate Ø 310 mm
• Art.907-K122-050 Rubber hoses kit 2SC 1/4” + R6 5/16” with protection L 5.0 m
• Art.014-2150-022 Grease spray gun F/160 SP HPS 2,2
• Art.014-2160-K19 Nozzles kit for grease spray gun HPS 1,9

Article
ART: 013-2000-020

Data sheet

• Weight: 12.4 kg
• For drums with capacity of 18-30 kg

Components

• 010-1005-000 (pump unit)
• 014-1051-030 (lid Ø 320 mm)
• 014-1062-030 (follower plate Ø 310 mm)
• 014-1095-000 (handle)
• 014-2150-022 (grease spray gun F/160 SP HPS 2,2)
• 014-2160-K19 (nozzles kit for F/160 SP HPS)
• 014-2170-000 (pressure regulator with connections)
• 907-K122-050 (rubber hoses kit 2SC 1/4” + R6 5/16” L 5.0 m with protection)

Characteristics / technical specifications

• Type: Air-operated grease sprayer kit
• Recommended drum capacity: 18-30 kg
• Pump ratio: R=14:1
• Grease viscosity supported: up to NLGI 2
• Weight: 12.4 kg
• Main supplied items: pump, pressure regulator, handle, lid Ø320 mm, follower plate Ø310 mm, hoses kit (5.0 m), grease spray gun F/160 SP HPS 2,2, nozzles kit HPS 1,9
