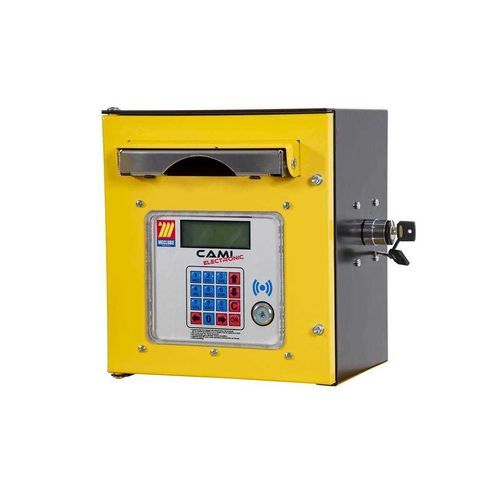

Single-component volumetric dispenser control unit 092-5510-000

Overview
Electronic control unit for management of diesel transfer and dispensing for private or fleet use. Measures and records total and individual dispensed quantities, supports vehicle/user identification, quantity preselection and local storage for up to 200 users. Delivered with manager-key or LAN connection. Expandable with electric pump, nozzle holder with microswitch for pump on/off and mechanical pulsed flow meter. Designed for wall or tank mounting.

Included items / Options

• Art. 092-5300-000 Red key - Manager - 1 piece
• Art. 092-5220-000 Communication kit USB key reader for codified PC
• Art. 092-5200-230 Electronic control unit MecGest 110/230V 50Hz complete with software

Red key and its reader
Using the red key and its reader with the MecGest PC software allows downloading dispensing data and activating new user codes. User and vehicle identification for enabling dispensing is performed via PIN codes.

Components

• 092-5200-230 - Electronic control unit MecGest 110/230V 50Hz
• 092-5220-000 - Communication kit USB key reader for PC (codified)
• 092-5300-000 - Red key (Manager)

Data sheet

• Voltage: 230/50 - 115/60 AC V/Hz
• Packaging: 285X285X230 mm
• Fluid: DIESEL
• Codified communication kit USB key reader for PC: Yes

Features / technical specifications

• Capacity to handle up to 200 users
• Measurement and recording of dispatched quantities (total and single dispenses)
• Identification of authorized vehicles/users via PIN codes
• Preselection of quantity to dispatch
• Manager-key or LAN connection available
• Expandable with electric pump, nozzle holder with microswitch, mechanical pulsed flow meter
• Wall or tank mounting
