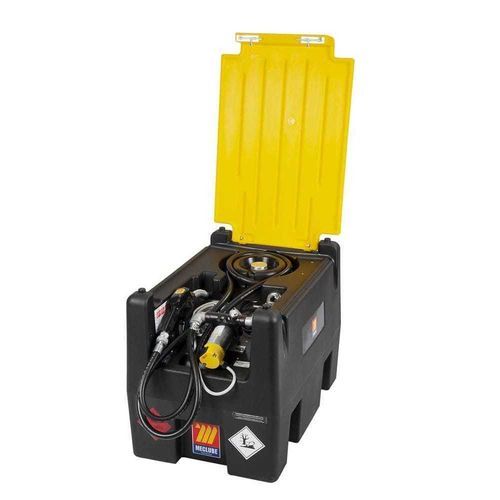

Rectangular tank 090-6220-012

for dieselpolyethylenetransfer

Composition

• Art. 091-5081-045 Pump 12V - power cable (sec. 4 mmq, 4 m length) with pincers and fuse - 45 l/min
• Art. 090-6220-000 Only 220 l Tank
• Art. 908-0516-040 Connection hose ø 20 mm M-M 1” 4 m length
• Art. 093-5210-000 Automatic nozzle PA60 Flow rate 70 l/min

Details
Rigid polyethylene tank designed for private-use transport of diesel with ADR exemption (see ADR regulation, page 180). Unit includes integrated transfer group with rotary-vane self-priming pump available in multiple voltages (12-24V), delivery hose ø 20 mm, length 4 m, and automatic nozzle with swiveling joint. System is supplied at 220 liters capacity and can be fitted with an optional flow meter for diesel measurement. Equipped with a pressurizing/depressurizing relief valve and a lockable lid.

Data sheet

• Flow rate: 45 l/min
• Voltage: 12 DC Volt
• Power: 264 W
• Duty cycle: 40 min
• Inlet-Outlet: F1" - F1" BSPG
• Ø Connection hose: 20 mm
• Nozzle: Automatic PA60 (up to 70 l/min)
• Packaging: 600 x 910 x 665 mm
• Fluid: Diesel
• Flow meter: Optional

Components

• 091-5081-045 — Pump 12V (45 l/min) with power cable and fuse
• 093-5210-000 — Automatic nozzle PA60 (70 l/min)
• 908-0516-040 — Antistatic rubber hose for diesel ø 20 mm, 4 m length
• 090-6220-000 — Only 220 l Tank

Technical specifications

• Article code (main): 090-6220-012
• Model / Series: TANK 220
• Capacity: 220 liters
• Pump flow rate: 45 l/min
• Available voltage: 12 DC Volt (pump also available in 24V)
• Power: 264 W
• Duty cycle: 40 min
• Connection hose diameter: 20 mm (length 4 m)
• Nozzle type: Automatic PA60
• Inlet/Outlet: F1" - F1" BSPG
• Packaging dimensions: 600 x 910 x 665 mm
• Fluid handled: Diesel
• Optional: Integration with flow meter
• Features: Pressurizing/depressurizing relief valve, lockable lid
