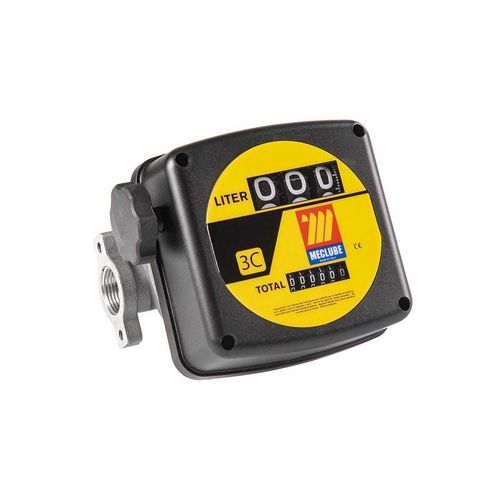

Volume flow meter 092-5103-000

for oildiesel

Description
Mechanical volumetric flow meter providing precise measurement of diesel and light oil for private or industrial dispensing. Features a 6-digit totalizer and a 3-digit resettable partial totalizer operated by a side knob. The unit allows reversing the fuel outlet direction and includes an adjustment screw for fine calibration. Suitable for installation on motor pumps or gravity-fed systems.

Composed by

• 6 digits totalizer
• 3 digits partial totalizer (resettable, max 999 l)
• Allowed fluids: diesel, light oil
• Inlet-Outlet: BSPG F 1" - F 1"
• Accuracy: +/- 1%
• Maximum pressure: 10 bar

Data sheet

• Flow rate: 20-120 l/min
• Accuracy: +/- 1%
• Inlet-Outlet: F 1" - F 1" BSPG
• Packaging: 220 x 150 x 220 mm
• Fluid: diesel

Characteristics / technical specifications

• Model / Article: 092-5103-000
• Totalizer: 6 digits
• Partial totalizer: 3 digits (resettable, max 999 l)
• Flow range: 20-120 l/min
• Accuracy: +/- 1%
• Inlet/Outlet connection: BSPG female 1" - female 1"
• Maximum pressure: 10 bar
• Suitable fluids: diesel, light oil
• Packaging dimensions: 220 x 150 x 220 mm
