Transmission shaft AT series
metalhollow

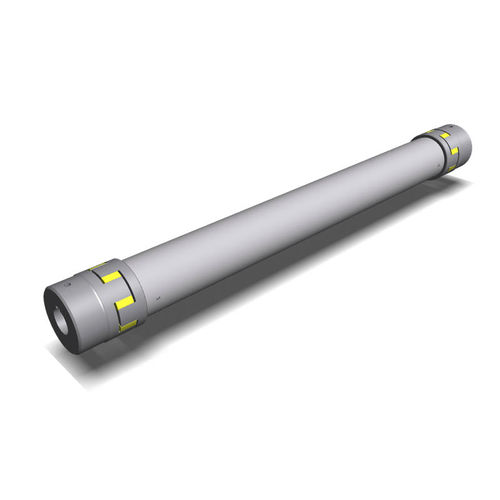

Transmission shaft - AT series - MECVEL - metal / hollow
Transmission shaft - AT series - MECVEL - metal / hollow
Add to favorites
Compare this product
Go to the MECVEL website for more information

Characteristics

Material
metal
Configuration
hollow
Product applications
transmission
Torque

Min.: 0 Nm
(0 ft.lb)

Max.: 190 Nm
(140.136808 ft.lb)

Length

Min.: 0 m
(0'00" )

Max.: 3 m
(9'10" )

Description

Clamped couplings allow transmission shafts to be installed after screwjack installation. Transmission shall be plugged to screwjack shaft, then the two halves of coupling shall be tightened (via their bolts) according to torque shown below. Radial mounting 3 mt. max length Low inertia momentum Vibration absorption Safe tight-on mounting No angular backlash Features: • Radial mounting • 3 mtr. max lenght • Low inertia momentum • Vibration absorption • Safe tight-on mounting • No angular backlash Materials: • Alu alloy clamps • Melt of elastomer grants resistance versus wear, UV, strain.... and also versus chemicals • Alu alloy extension tube
