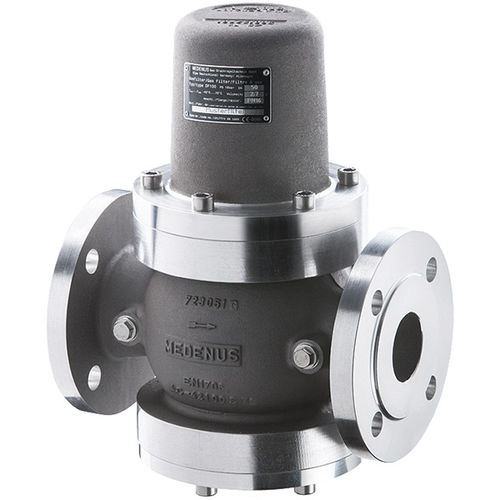

Gas filter DF100
airfumecompressed air

gas filter
gas filter
gas filter
Add to favorites
Compare this product


Characteristics

Designed for
air, gas, fume, compressed air
Filtration element
basket, cartridge
Applications
dust
Material
cast aluminum
Mounting
flange
Other characteristics
high-efficiency, compact, automatic, high-flow, modular, high-temperature, vertical, horizontal, cellular
Filtration size

2 µm

Min.: 2 µm

Max.: 2 µm

Operating pressure

16 bar (232.06 psi)

Min.: 0 bar (0 psi)

Max.: 16 bar (232.06 psi)

Flow

40,000 m³/h (1,412,586.669 ft³/h)

Min.: 0 m³/h (0 ft³/h)

Max.: 40,000 m³/h (1,412,586.669 ft³/h)

Description

The new MEDENUS cellular gasfilter series DF100 are designed for retaining gas impurities, such as dust, rust and other solid particles at a defined location. They are mainly used in gas pressure and measuring stations and upstream of equipment, the function of which would be influenced by contaminants. These filters are suitable for gases in accordance with DVGW Code of Practice G260/262 and all other neutral and non-corrosive gases. (other gases on request). The series is certified by DVGW,CE and EAC.
