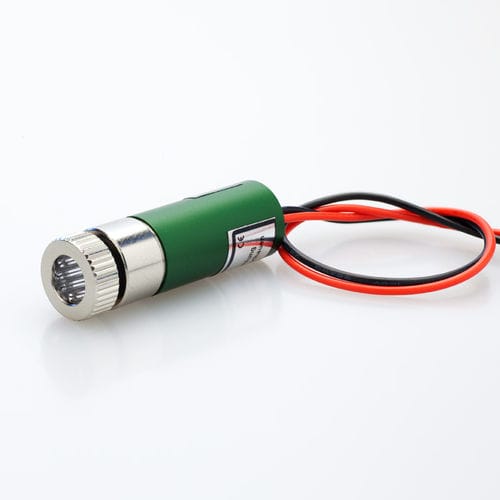

Red laser module KLM-4-635

line-cross generatingadjustablefor integration

Cross hair laser module BRIGHT RED 4 mW, adjustable focus Miniature cross line laser module with high visibility for integration into other machines. Adjustable focus and line position, very high reliability and service life. MediaLas cross hair lasers are small, well-thought-out, and powerful all-rounders. Our modular system enables a multitude of module variants, in order to always achieve the optimal results required each day in the production area. Alongside the extremely small dimensions, the primary aspect to emphasise is the high level of reliability which it achieves over a very long service life. Especially the 12mm modules are very easy for the user to calibrate and adjust for their respective application. Both the focus, i.e. the line width at the focal point, as well as the line position can be adjusted. This is quick and easy to achieve by turning the front brass ring, which also contains the optics. Various brackets are vailable, which are adjustable in several different axes, for mounting to the machine or the workplace. This makes it possible to set practically any beam position. Adjustment is possible in all directions. Our Design Department is always at your disposal to discuss customer-specific requirements. Electrical connection Standard: Flexible wires, red and black, 20cm. Please note the positive potential on the housing! Plug type PSU: The 230V version includes a cable with DC connector, and fitting plug type power supply.
