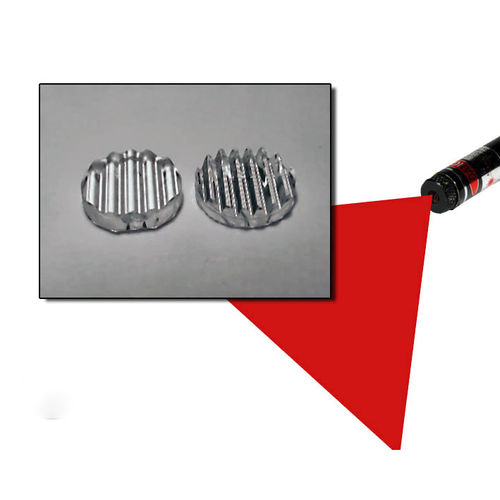

Line generating lens element Line Optic 90

plasticlaser

Line generating optics - Laser Line Generator 90° Plastic lens line generator for laser modules. Technical Information Plastic lens Diameter : ca. 8 mm Line angle : ca. 90° Laser power : up to 1 W Line length overview Angle : Distance : Line length approx. 5° : 1 m : 8 - 9 cm 10° : 1 m : 17 cm 20° : 1 m : 0,34 m 35° : 1 m : 0.62 m 45° : 1 m : 0.85 m 60° : 1 m : 1.16 m 90° : 1m : 2m 110° : 1 m : 3 m 120° : 1 m : 3,4 m The line length increases linearly as the distance increases. Therefore at 2 m, the line length is also twice as long. Scope of delivery Optics only, no laser included.
