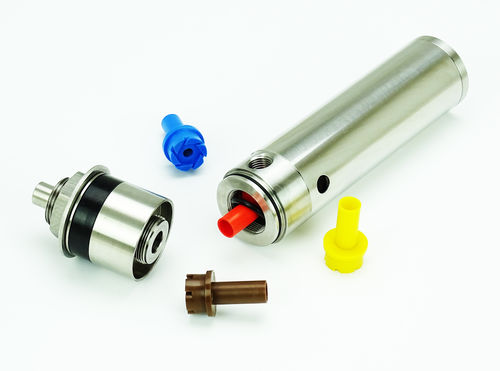

Cabinet cooler A70025EX

compressed airindustrialvortex tube

The EX Cabinet Cooler is suitable for cooling cabinet/panels in hazardous locations The Meech EX Cabinet Cooler uses compressed air to provide a cold air source that stops industrial cabinets/panels or enclosures in hazardous locations from overheating. The Meech EX Cabinet Cooler is suitable for installation in category 2 (Zone 1), T4 locations, where ATEX or IECEx certification is required. The Cabinet Cooler has no electrical/electronic components making them entirely non-electrical. The cooling is provided from a Vortex Tube located inside the cooler. The Cabinet Cooler creates both a hot and cold stream of air, the cold air is directed inside the enclosure whilst the hot air is released to the atmosphere via two holes located in the side of the Cabinet Cooler. The Cooler can be mounted to the directly to the top, side or underneath of the enclosure via a 26mm diameter hole. An O-ring seal between the Cabinet Cooler and the enclosure wall maintains the integrity of the enclosure.
