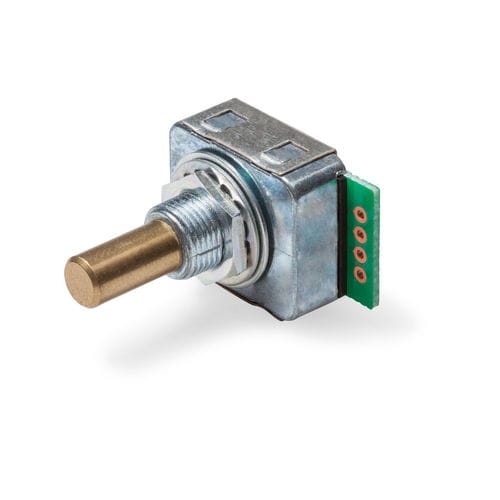

Incremental rotary encoder MRB

photoelectricsolid-shaftpanel-mounted

With the widest choice of tactile feedback, the panel encoder can be adapted to suit the application. The MRB panel encoders are used for manual setpoint adjustment and their low power consumption makes them suitable for use in battery-powered equipment. The wide range of detent torques, pushbutton actuation forces and electrical connection options is particularly noteworthy. This variety provides a high degree of freedom in the choice of operating button. For example, a small diameter knob combined with a high detent torque can ensure that the desired value can only be changed with a higher operating force. This combination can, for example, prevent unintentional changes to current values. On the other hand, a knob with a larger diameter can provide the desired smooth operating feel, as a higher leverage is applied to the fulcrum. Portfolio allocation Detents / resolutions: Two variants of detents, even without mechanical detent There are 2 different mechanical detents 16 or 25 ppr. (16 or 25 audible and tactile "clicks") or without mechanical detent (16 or 25 ppr.) available. If a lower resolution is required, this can be found in the MRS series. Detent torques: Four variants - largest selection The MRB rotary encoder offers the widest selection of detent torques. In four variants, from a smooth to a very high detent torque (0.4 ±0.1 Ncm / 0.6 ±0.2 Ncm / 1.05 ±0.35 Ncm / 1.6 ±0.5 Ncm). In the variant without mechanical detent, an operational torque (<0.4 Ncm) remains.
