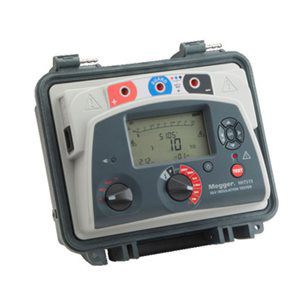

Insulation resistance tester MIT515

voltageinsulationresistance

• Measures up to 10 TΩ • Selectable test voltage from 250 to 5000 V • PI, DAR, and DD test • Improved productivity – can operate from mains power if battery dead • Li-ion battery - extended capacity, rapid charge • CAT IV 600 V safety rating The MIT515 5 kV insulation resistance tester is a CAT IV rated, compact tester for the diagnostic testing and maintenance of high voltage electrical equipment. Enclosed in a tough case, it is both smaller and lighter than its predecessor making it even easier to carry and store. As well as measuring insulation resitance to 20 TΩ, the MIT515 also offers various diagnostic tests such as polarisation index, dielectric absorption ratio, step voltage, dielectric discharge, and ramp testing. The MIT515 is also equipped with lithium-ion fast rechargeable batteries and has a large, clear, easy-to-read, display making it equally suitable for use in both bright sunlight and poorly lit environments. Information displayed includes resistance, voltage, leakage current, capacitance, battery status, and time constant. In addition, the elapsed time of the test is displayed constantly, removing the need for separate timer.
