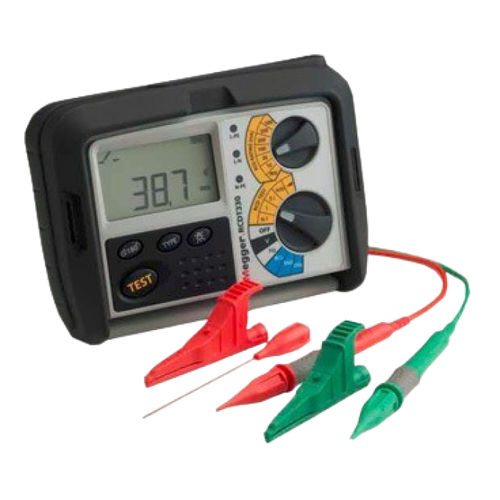

RCD tester RCDT300 series

installationcompactdigital

• Tests standard, DC, selective and programmable RCDs • Ramp testing (RCDT320/330) • Auto (Remote) testing (RCDT320/330) • Three-phase safe • Enables testing on 110 V centre tapped supplies. • USB interface for downloading test result (RCDT330) • Tough rubber armoured case with built-in cover • Weatherproof to IP54 The RCDT300 series of residual current device testers are innovative instruments that combine rugged construction with intuitive operation. Even if they are inadvertently connected to a live three-phase supply, Megger’s RCDT300 range remain undamaged and present no safety hazard to you. Available in three models, the RCDT300 series are compact and easy to use. Their rubber overmoulding gives them additional protection, plus they come with a built-in display cover. All models in the range are water and dust resistant with an IP54 rating. There are three models in the range: RCDT310: suitable for use on supplies between 100 V and 280 V, and offers 0.5I, I and 5I tests, with provision for tests starting at 0 ° or 180 ° of the supply waveform, as well as for DC tests. It also has facilities for testing standard and selective RCDs and covers current ranges from 30 mA to 500 mA. When connected to a live supply, it defaults to voltmeter mode. RCDT320: covers a wider supply voltage range of 50 V to 280 V, allowing use with centre-tapped 110 V supplies. It incorporates ramp testing, for RCD tripping current measurement, and the unique Megger auto sequence test feature, which saves time by allowing the tester to conduct all RCD tests and store the results while the operator stands by the RCD, resetting it as appropriate.
