Bluetooth wireless module SLM756

WiFidata

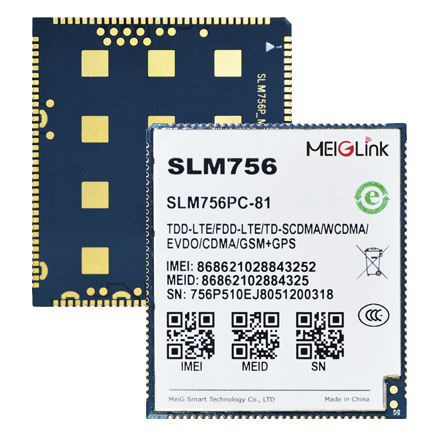

MeiG Smart SLM756 smart module, based on Qualcomm platform of MSM8909, is a new generation of LTE intelligent communication module. It supports multi-modes of network connectivity including TD-LTE/FDD-LTE/WCDMA/TD-SCDMA/EVDO/CDMA/GSM and supports multi-modes of satellite signals from GPS/Glonass/BeiDou for positioning. SLM756 has a memory spec of 8GM+1GBwith built-in Android OS. It is integrated with a high-performance GPU-Adreno 304 and features encoding and decoding of various videos and audios, supports 720P video, has a rich set of interfaces for video and audio and abundant GPIO ports. SLM756 not only provides high-speed access of broadband data, but also has the functionalities of voice, texts, address books, wifi, bluetooth and GPS. This module is applicable in a wide range of applications, such as video monitoring, security, vehicle equipment, smart hand-held terminals etc. Main Advantage： ● Support 2.4G& 5G Wi-Fi ● Support Cat.4 FDD&TDD, MAX DL 150Mbps ● LGA+LCC ● Support 1280*720@60fps Display ● Support Dual-MIPI CAMERA ● Support 1080p@30fps decode and 720p@30fps encode General features: OS： - Android 7.1 Storage： - 8GB eMMC+1GB LPDDR3（default） Operating Temp： - -25°C ~ +75°C Size： - 44.0x39.0x3.0mm Package： - LCC+LGA 130PIN Weight： - 10g Certification: - CCC/CE/FCC/BQB Outstanding features： WLAN： - IEEE 802.11a/b/g/n 2.4G&5G BT： - BT2.1+EDR/3.0/4.1 GNSS： - GPS/GLONASS/BeiDou Interface： LCM： - HD（720p）,4-lane,DSI Camera： - Support 8MP primary;2+1 lane CSI or 4-lane CSI
