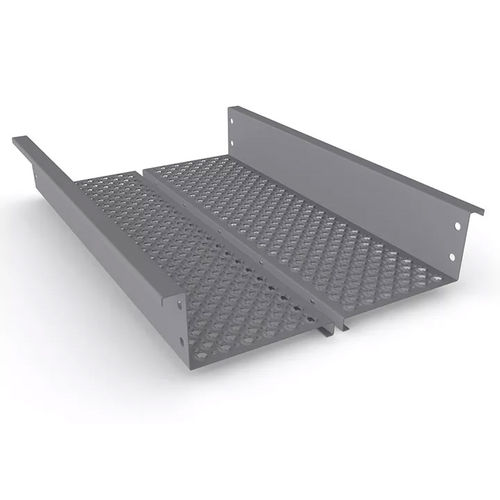

Galvanised steel access gangway

Product information

Applications:

• Chemical, petrochemical and metallurgical industries: gangways in technical galleries
• Mining and quarrying: gangways on conveyor belt installations
• All industries and ports: gangways on cranes and travelling cranes

Advantages:

• Quick and easy to install
• Integrated skirting board
• Compliant with EN ISO 14122 (safety of machinery — permanent means of access)
• Anti-slip surface and guaranteed drainage of liquids
• Durable construction: hot-dip galvanised steel

Technical data — weight

• 16 kg per running metre for two half gangways 300 mm each (total width 600 mm)
• 18.5 kg per running metre for two half gangways 350 mm each (total width 700 mm)

Material & performance
Steel, hot-dip galvanised after fabrication. Other materials or surface treatments available on request.

Safe for pedestrian passage with 150 kg on 200 x 200 mm. Recommended span: 2,500 mm. Distributed load: 250–350 kg/m2.

Accessories / Fixings

• BPR Flange — clamp connection with cage nut and M8 countersunk head bolt
• BPR Fast fixing — clamp connection with M8 countersunk head bolt
• BPR Screw connection — special M8 x 20 bolt with washers and self-locking nut

Technical specifications

• Model: Passcran (modular gangway with integrated skirting board)
• Widths: 600 mm (2 × 300 mm) or 700 mm (2 × 350 mm)
• Weight: 16 kg/m (600 mm) or 18.5 kg/m (700 mm)
• Point load capacity: 150 kg on 200 x 200 mm
• Span: up to 2,500 mm
• Distributed load: 250–350 kg/m2
• Surface: anti-slip with guaranteed drainage
• Standard: EN ISO 14122
• Origin: produced in France
