Steel floor covering

aluminumgalvanized304 stainless steel

Product description

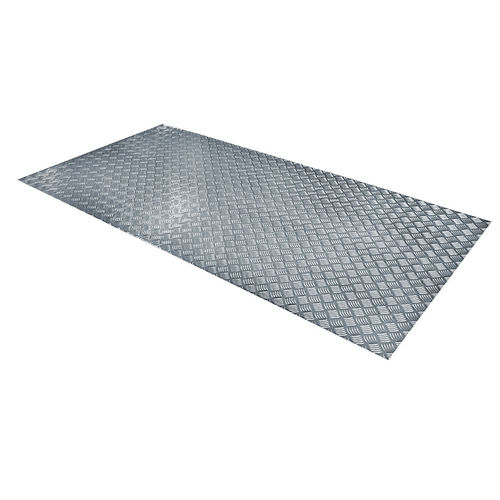

MEISER chequer plate is a conventional closed floor covering designed for industrial applications. Panels are available in raw or hot-dip galvanised steel, aluminium (AlMg³) and stainless steel (1.4301). Depending on customer requirements, sheets can be cut, perforated, recessed, edged and supplied with specific surface finishes. The low covering height is advantageous for refurbishment and confined spaces. The relatively low load-bearing capacity can be compensated by structural reinforcements or by using MEISER plated grating or Safety Floor solutions.

Your advantages

• Custom, made-to-measure manufacturing
• Installation plans provided on request
• Marking and positioning according to your specifications
• Prepared for fastening (e.g. countersunk holes) to simplify on-site work
• Stock of standard sheet sizes ensuring short delivery times
• Systematic quality assurance
• Easy installation and assembly
• Good passability with pallet trucks and small sliding trolleys

Technical data
Material:
• Raw / hot-dip galvanised steel
• Aluminium (AlMg³)
• Stainless steel (1.4301)

Common thicknesses:
3/5, 5/7, 6/8, 8/10, 10/12
Other dimensions on request.

Accessories / Fixings
BPR screw connection: M8 x 20 special bolt with washers and self-locking nut.

Applications / Specifications

• Conventional closed chequer plate for industrial floor coverings
• Processing options: cutting, perforation, recessing, edging and surface finishing
• Prepared for fastening; installation drawings on request
• Suitable where low covering height is required and where easy passage for pallet trucks is necessary
