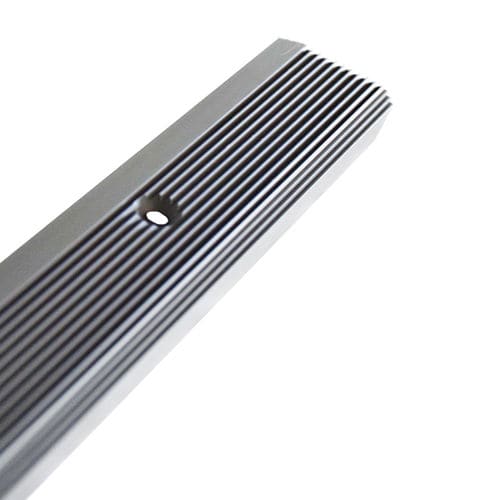

Stair nosing Licorne

Product information
Features

• Countersunk holes Ø5 mm with 190 mm spacing for fixing
• Material: Aluminium AlMg3, alloy 6060 T5, hardness 11; anodized or raw (non-anodized)
• Colors: natural, gold or black
• Variants: with holes, without holes, XL width

Use

• Contrasting safety nosing for stair edges
• To be fixed on each step

Installation

• Cut to length on site or order precut to size
• With countersunk holes: fix with rivets or countersunk screws on metal, concrete or wooden steps
• Without countersunk holes: adhesive fixing on metal, concrete or wooden steps

Technical data
Material: Aluminium AlMg3 (6060 T5) anodized or raw - Variants: with holes / without holes / XL with holes
Length (mm): 2000
Width (mm): 36 (standard) - 60 (XL)
Height front (mm): 18 (standard) - 24 (XL)
Weight (kg/pc): 1.10 (standard) - 1.70 (XL)

Characteristics / Technical specifications

• Material: Aluminium AlMg3
• Finish: anodized (6060 T5 hardness 11) or raw (non-anodized)
• Colors: natural, gold, black
• Fixing: countersunk holes Ø5 mm with 190 mm spacing; rivets or countersunk screws for holed versions; adhesive fixing for non-holed versions
• Application: contrasting stair nosing, to be fixed on each step
