Safety gates system UDG series

Product information

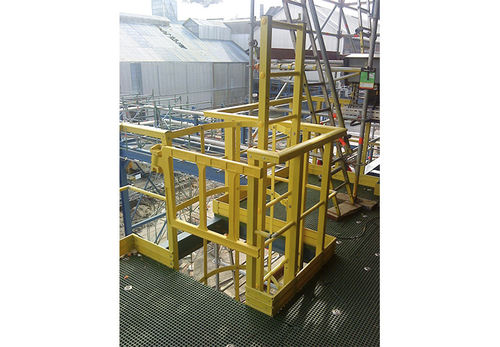

According to DIN EN ISO 14122-4, a self-closing gate must be installed at ladder entrances and exits where required by a risk assessment. MEISER supplies a standardized self-closing safety gate made of polyurethane (PUR). It is offered in multiple widths and is designed for simple installation, long service life and low maintenance. The yellow signal colour improves visibility and site safety.

Technical data
Overview of self-closing gates
Type | Opening
UDG 22 | up to 560 mm
UDG 27 | up to 690 mm
UDG 32 | up to 820 mm
UDG 37 | up to 950 mm

Characteristics / technical specifications

• Standard: DIN EN ISO 14122-4 (requirement for ladder entrances/exits)
• Material: Polyurethane (PUR)
• Finish / colour: Yellow (signal colour for increased visibility)
• Available types / openings: UDG 22 (up to 560 mm), UDG 27 (up to 690 mm), UDG 32 (up to 820 mm), UDG 37 (up to 950 mm)
• Features: self-closing; easy installation; durable; low maintenance
