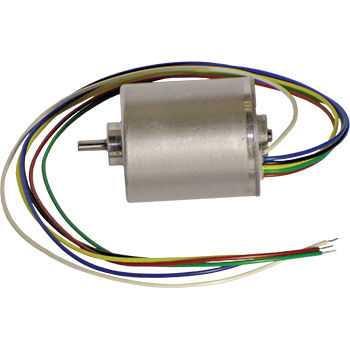

Brushless motor DCB series

DC24 Vhigh-efficiency

Our DC range of motors is now complimented with a brushless DC option that features an inner rotor with integrated electronics for step-less speed control and exceptionally quiet operation with a longer life than that of the brushed motors. These highly efficient BLDC motors are suitable for continuous operation and can be supplied as a motor only or fitted to one of our gear boxes - see FBB T3 and UBB T6 gear motor series for output speed and torque ranges. • Rated voltage 24VDC • Bi-directional • PWM speed control • Speed signal feedback: six pulses per revolution • Locked rotor protection • Exceptionally low noise levels • Integrated current protection 2.5 Amps • Life up to 10,000 hours depending on usage • 125+/-15 °C Thermal shutdown temperature With all the functionality included into the design of this BLDC motor it is versatile yet strong enough to operate in many applications. 1. Operating voltage range: 8-26VDC. 2. Motor axial end play: 0.05-0.5mm. 3. Measuring method for motor output shaft extension: push the rotor against the end cap to measure the shaft extension. 4. Cable connection method: 4:1 When the red wire is connected to the positive pole if the power supply (+) and the black and blue wire are connected to the negative pole of the power supply (-) the motor direction is CW when viewed output shaft side of the motor. 4:2 When the red wire is connected to the positive pole if the power supply (+) and the black, blue and yellow wire are connected to the negative pole of the power supply (-) the motor direction is CCW when viewed output shaft side of the motor.
