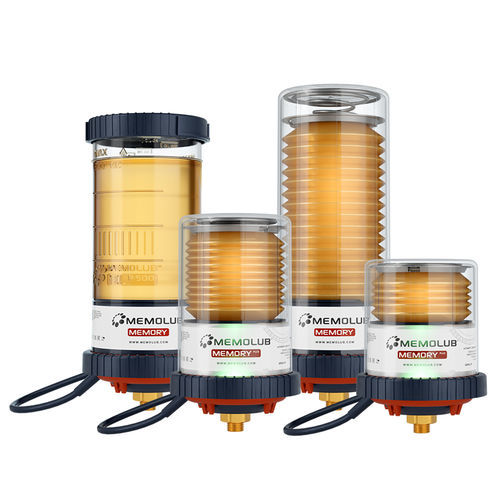

Single-point lubricator MEMORY series

multi-pointelectromechanicalautomatic

Reusable single & multi-point automatic lubrication system. 24V powered. Up to 12 lubrication points simultaneously. Remote installation up to 8m. 7 Settings. Build-in visual feedback. POWERED EXTERNALLY. EXPULSION TIME, MEMORISED. The MEMOLUB MEMORY Series is supplied with a 30cm wire lead that is connected to an external power source. A constant 24VDC power is supplied during periods of machine operation and will continue to follow the program until power is removed. The MEMOLUB MEMORY Series is perfectly suited for equipment that is frequently stopped. Its onboard memory registers the elapsed time since its last expulsion. When restarted, MEMOLUB MEMORY retakes its count until it's time for the next scheduled expulsion. This prevents over-lubrication of your systems. VISUAL FEEDBACK AS A PLUS. The newly added MEMOLUB MEMORY PLUS models include an integrated visual feedback system, providing clear indicators of operation and alerts for any issues, ensuring reliability and ease of maintenance across a wide range of applications. The right volume at the right frequency. There are 7 basic frequency settings that are suitable for most industrial applications. They are programmed by installing one or a combination of the three colored timing rings into the ring holder attached to the brass fitting. When you screw the MEMOLUB lubricator onto the brass fitting, the timing rings depress the switches on the bottom of the lubricator. The combination of the depressed switches will determine the pumping frequency. Included in the kit are eight spacer washers for adjusting the amount of lubricant discharged per pumping cycle.
