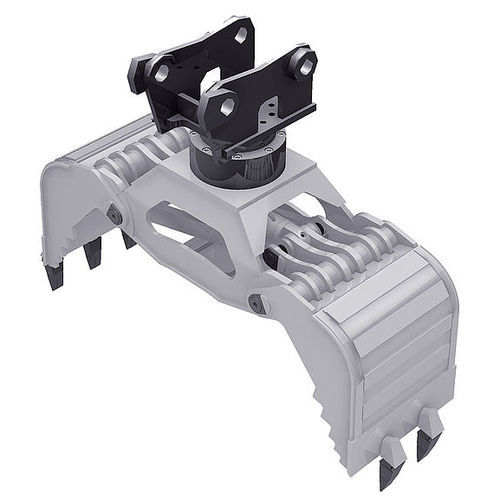

Sorting bucket grab UG series

two-rope mechanical

Full swivel The over-dimensioned, wear-free hydraulic three-stage motors in a compact design are rated not only for high axial but also high radial loads. Blades and side blades are made of Hardox 400. Protected mechanism The cross-brace accommodates both: The powerful hydraulic cylinder and the synchronous steering mechanism. Tooth system Teeth angled slightly inwards ensure optimised grab characteristics, even with maximum opening widths. Under control The cylinder for the clam shell closing function is equipped with a check valve. This prevents the clam shells being opened accidentally. Control Ideally, there should be two double-acting hydraulic circuits on the machine side. If only one circuit is available, the „open/ close“ and „swivel left/right“ functions can be electrically switched via an additional directional control valve. For external products too Over 2000 Menzi universal grabs are already in daily use in harsh industrial applications. We offer a finely-tuned programme with seven different sizes for excavators from 1 to 25 tonnes. Upon request Every grab is available without teeth (only with blade), with snap-on blades or with various quick-change mechanisms.
