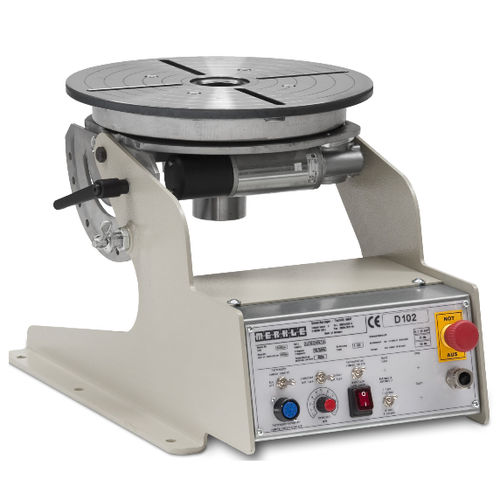

motorized welding positioner / rotary / linear
D102, D302

{{requestButtons}}

Characteristics

  • Type:

    motorized

  • Orientation:

    rotary, linear

Description

The series
type D 102 and D 302
are welding
positioners for welding with electrode, MIG-MAG
TIG and Plasma as well as Plasma cutting. The two
devices differ in torque and RPM range (see technical
data).
The face plate has a diameter of 400 mm and can be
locked by a lever, and tilted to any angle within the
135° range.
As standard, the turntables come delivered with
a 60mm spindle bore with the option to increase
this to 150mm. The spindle bore can be used when
clamping long material in the chuck or jig, or for
routing supply lines for compressed air/cooling fluid
or for the supply of purging gas to the welding job.
The face plate centralising bore has a Dia of 78mm
(154mm with 150mm spindle bore) and is used for
centralising jigs or chucks when mounting to the
face plate
