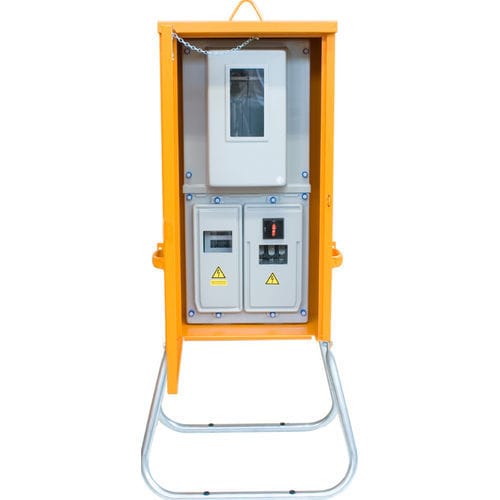

Distribution network cabinet M-A 80

wallweather-resistantrobust

These products form the intersection between the supply network and the site distribution system. They measure the consumed amount of electrical energy. The connected load is between 55 and 436 kVA; meter and converter station in IP54, completely protective-insulated, terminal outlets to subordinate site distributors. Robust housing made from galvanized steel sheet with weather-resistant powder coating in RAL 2000 (yellow orange); pivotable crane eyelets and ergonomic handles; with wall mount (only for distributor types with a weight of up to approx. 70 kg). Measuring device as per DIN 43870. All installations are protective-insulated with protection rating IP54. Galvanized frame with plastic sleeves or galvanized lugs for earth pegs for attaching the equipment to the ground. As a connection point to the grid of the power supply company on building sites in cases where connection distributor cabinets are not permitted in the relevant supply area due to the technical connection conditions or if the form of the site grid requires the separate accommodation of the power supply company connection and measuring device or if - on large sites - the distribution of electricity takes place via further group and main distribution boards. The customer's connecting cable upstream of the measuring device may have a maximum length of 30 m.
