Thermocouple wire

Product overview

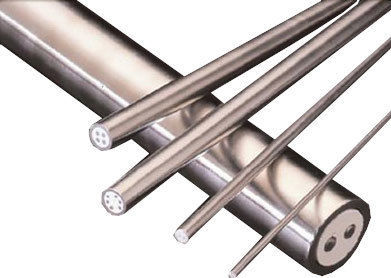

Cables with highly compacted magnesium oxide (MgO) mineral insulation. Designed for continuous operation at high temperatures and for resistance to chemical agents and mechanical stress. Available for thermocouples and RTD sensors with a choice of conductor alloys.

Available types

• Thermocouple cable types: J, K, etc.
• RTD versions with nickel or copper conductors

Features

• Standard diameters: 1 – 1.5 – 2 – 3 – 4.5 – 6 mm
• Sheath materials: AISI 304, AISI 316, INCONEL 600, etc.
• High resistance to temperature, chemical agents and mechanical movements

Supply options

• Supply of semi-finished sheathed thermocouple cables in any diameter and length
• Options include pre-welded hot junction (insulated from ground or not) and 10 mm stripped lead ends for final assembly by the customer

Technical specifications

• Insulation material: Highly compacted magnesium oxide (mineral insulation)
• Conductor types: Thermocouple alloys (types J, K, etc.) and RTD conductors (nickel or copper)
• Standard diameters: 1; 1.5; 2; 3; 4.5; 6 mm
• Sheath materials: AISI 304, AISI 316, INCONEL 600, etc.
• Mechanical/chemical resistance: Designed for resistance to high temperatures, chemical agents and mechanical stress
• Custom supply: Semi-finished options with pre-welded hot junction and 10 mm stripped leads
