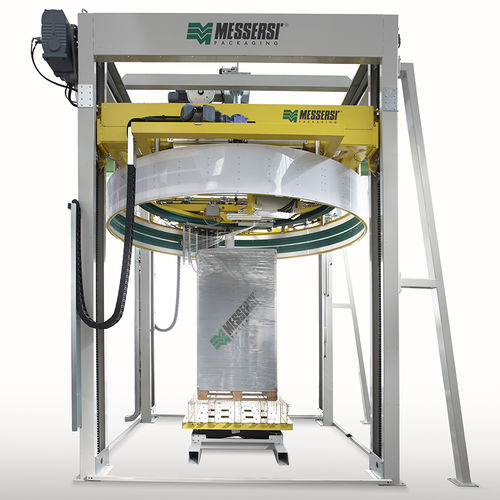

Rotary ring stretch wrapper SATURNO
automatic

rotary ring stretch wrapper
rotary ring stretch wrapper
rotary ring stretch wrapper
rotary ring stretch wrapper
rotary ring stretch wrapper
rotary ring stretch wrapper
rotary ring stretch wrapper
Add to favorites
Compare this product


Characteristics

Type
rotary ring
Operating mode
automatic
Maximum pallet weight

Max.: 20 kg
(44.09 lb)

Min.: 18 kg
(39.68 lb)

Power

13 kW, 16 kW
(17.68 hp, 21.75 hp)

Capacity

Max.: 200 p/h

Min.: 100 p/h

Description

Automatic wrapping machine with rotating ring to quickly wrap products with variable sizes. Ring wrapping machine with mechanical control of the pre-stretching of the film adjustable from the operator panel. It reaches an output of 100/120 pallets/hour. The film reel dispenser with powered pre-stretch system can house film reels up to 18/20kg, increasing the autonomy of the machine compared to traditional systems. The components regulating the pre-stretch are fixed, they not rotate with the ring: the system for gripping, cutting and welding is standard equipment. The electric tension is driven on the ring through a magnetic induction system. This technological solution ensures low obsolescence, total lack of wear from friction due to warm contacts and mechanical components such as timing belts, reduction of costs for maintenance and spare parts.

VIDEO
