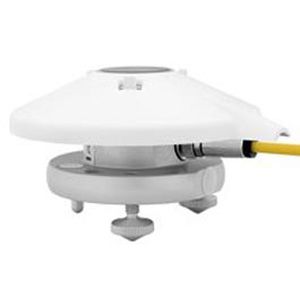

Pyrgeometer

The pyrgeometer is a sensor of atmospheric radiation. It is a hemispherical radiometer used to measure the incident infrared radiative flux on the surface of the Earth in all directions (solid angle of 2∏) and due to long wave radiation from the atmosphere or that emitted and reflected by the ground. Mechanical characteristics: Dimensions : 110mm (W) x 68.3mm (H), 30mm (dome width) Weight : 600g Main features: Spectral range : 4500 to 42000 nm Measurement range : -250 to +250 W/m² Sensitivity : 5 to 15 μV W-1 m2 Temperature range : -40°C to +80°C Temperature dependence : <5% (-10°C to +40°C) Response time : <18s Field of vision : 150° Non-linearity : <1%
