Sheet metal folding machine TZ 150
electric

sheet metal folding machine
sheet metal folding machine
sheet metal folding machine
sheet metal folding machine
sheet metal folding machine
Add to favorites
Compare this product


Characteristics

Material
sheet metal
Operation
electric
Folding length

15'00" , 21'00" , 27'00" , 32'00" (4.6 m)

Description

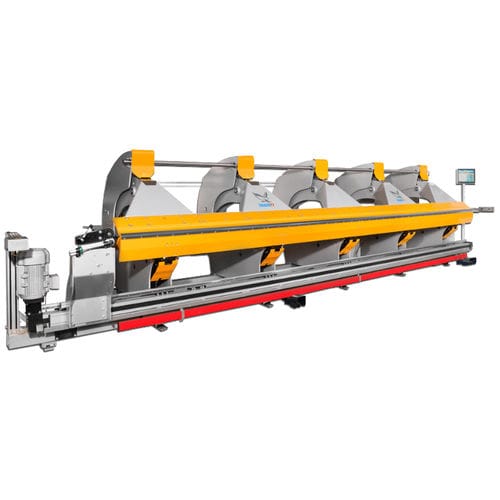

The folding machine Thalmann TZ 150 is a long folder, it can fold sheet metal with a length of 15 to 32 feet or custom with a folding capacity of 16 gauge. This electric long folder has a vertical force drive system and rigid C-Frames which distribute the clamping force over the clamping and folding beams. Then the clamping force is more important. It is also possible to make folds of 45°. Thalmann folders are built with a strong torsion shaft of 2” on the upper clamping beam, which ensures a perfect parallelism, even if the hydraulic cylinders connected to the top beam work differently. The Thalmann TZ 150 folding machine is available in 4 models to fold long sheet metal of different sizes : 15′, 21′, 27′ and 32.75′ or custom length Specifications of TZ 150 long folder Bending length : 15′, 21′, 27′ and 32.75′ or custom length Folding capacity : 16 ga Number of C-Frame : 4, 5, 7 and 9

VIDEO
