Sheet metal folding machine TD 150
hydraulic

sheet metal folding machine
sheet metal folding machine
sheet metal folding machine
sheet metal folding machine
sheet metal folding machine
sheet metal folding machine
Add to favorites
Compare this product


Characteristics

Material
sheet metal
Operation
hydraulic
Folding length

21'00" , 27'00" , 32'00" , 40'00" (6.4 m)

Description

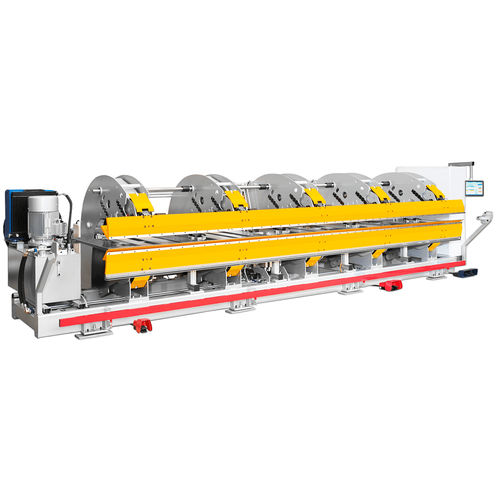

The folding machine Thalmann TD 150 is a double folder, it can fold long sheet metal with a length of 21 to 40 feet. This hydraulic double folder can fold complex parts without few manipulations, because it folds upward and downwards. It is also possible to make folds of 45°. Thalmann double folders are driven by a unique technology of synchronous shaft which synchronizes the folding and the clamping beam built, ensures a high accuracy and a perfect parallelism. These double folders are equipped with a gripper system for a precise positioning of the metal sheet. The Thalmann TD 150 folding machine is available in 4 models to fold long sheet metal of different sizes : 21′, 26.8′, 32.75′, 40′ or longer Specifications of TD 150 double folder Bending length : 21′, 26.8′, 32.75′, 40′ or longer Power : 26 HP à 33 HP Folding capacity : 16 ga Number of C-Frame : 4, 5, 6, 7 and 8

Catalogs

No catalogs are available for this product.

See all of Metfab‘s catalogs
