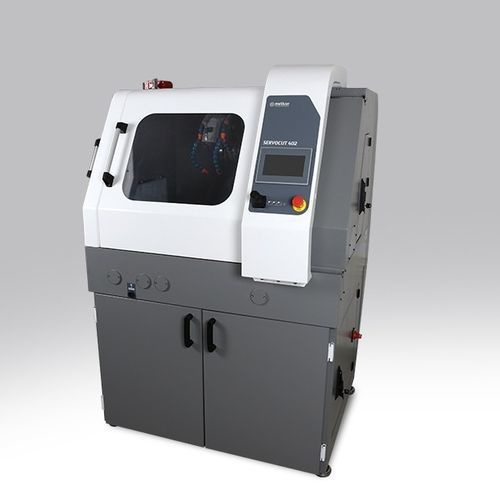

Metal cutting machine SERVOCUT 402-AA series
for metalographic laboratorieswet abrasive

metal cutting machine
metal cutting machine
metal cutting machine
metal cutting machine
metal cutting machine
metal cutting machine
metal cutting machine
Add to favorites
Compare this product


Characteristics

Material
for metal
Applications
for metalographic laboratories
Other characteristics
wet abrasive

Description

Automatic Abrasive Cutting Machine Programmable with 7" HMI touch screen control, with Siemens PLC control unit, with automatic chop cutting and automatic table-feed cutting systems, with various cutting methods, programmable with colored LCD display of cutting parameters, accurate and motorized positioning of the specimen in X - Y and Z axis (X-axis for plane parallel cutting is optional), ergonomic joystick with adjustable speed control, integrated feed path control, power dependent adjustable feed rate, variable cutting force, pulse cutting mode, bar graph overload display, powerful 7.5 kW cutting motor, with unique belt protection system, with variable cutting speed 600-2400 rpm, with electronic brake system, cutting capacity up to 150/130 mm solid stock, with cut-off wheels up to Ø400/350mm, twin T-slotted table(Y-direction only) made of stainless steel, bottom part as rugged alloy base casting, extraordinary access for easy handling with sliding door and side openings, with extra advanced cutting methods: "Rapid Pulse Cutting, Table Oscillation Cutting, Instafeed Cutting, Automatic Chop Cutting, Automatic Table Feed Cutting, Combined Cutting" Ready for operation. Without clamping devices, without recirculation cooling tank. Includes a standard set of cutting consumables composed of; *An assortment of 20 cut-off wheels with 400 mm dia. *5 lt of Metcool cooling fluid. 400 V, 3 phase, 50/60 Hz.

VIDEO
