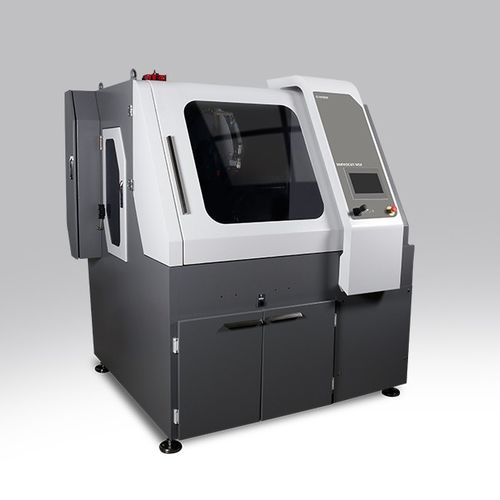

Metal cutting machine SERVOCUT 602 series
for metalographic laboratoriesthree-phasewet abrasive

metal cutting machine
metal cutting machine
metal cutting machine
metal cutting machine
metal cutting machine
metal cutting machine
metal cutting machine
Add to favorites
Compare this product


Characteristics

Material
for metal
Applications
for metalographic laboratories
Phase
three-phase
Other characteristics
wet abrasive

Description

Multi-Target Automatic Abrasive Cutting Machine For cutting large and multiple specimens, ability to work with cut-off wheels up to Ø600 mm, cutting capacity up to Ø225 mm solid stock 100Hx500D mm for rectangular specimens, powerful 15 kW cutting motor with unique belt protection system, with electronic brake system, with variable cut-off wheel speed 600-2400 RPM, ability to set fixed peripheral speed of cut-off wheel from 20 to 60 m/s. overload display and protection system, accurate Servo motor driven table and wheel movement for precise and fast positioning, joystick with adjustable speed control, stainless steel table (772x710mm) with 560 mm Y-axis movement range, Programmable with 10" HMI touch screen control, Siemens PLC control unit, automatic cut-off wheel diameter measurement and automatic starting position adjustment according to cut-off wheel wear, Positioning System allowing clamping several components simultaneously, with automatic chop cutting and automatic table feed cutting systems, with automatic cutting feedrate control, with extra advanced cutting methods: "Rapid Pulse Cutting, Table Oscillation Cutting, Instafeed Cutting Automatic Chop Cutting, Automatic Table Feed Cutting" Powerful LED illumination, robust construction. Ready for operation. Without clamping devices, without recirculation cooling tank. Includes a standard set of cutting consumables composed of; *An assortment of 10 cut-off wheels with 600 mm dia. *5 lt of METCOOL cooling fluid. 400 V, 3 phase, 50/60 Hz.
