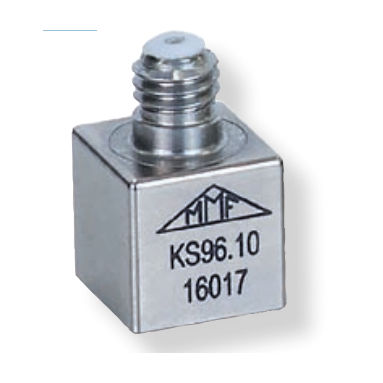

Single-axis accelerometer KS96B
IEPEshearICP

single-axis accelerometer
single-axis accelerometer
Add to favorites
Compare this product


Characteristics

Number of axes
single-axis
Technology
IEPE, shear, ICP
Other characteristics
miniature, small, with TEDS, industrial, for general purposes, for automotive applications, for machine condition monitoring
Acceleration range

Min.: 0 m/s²
(0 ft/s²)

Max.: 5,000 m/s²
(16,404 ft/s²)

Frequency

Min.: 0.2 Hz

Max.: 18,000 Hz

Description

Miniature Accelerometers Properties • IEPE precision accelerometers with shear ceramics • Well suited for modal and structural analysis • Easy mounting by cubic case with M3 thread • Versions with vertical and horizontal outputs • TEDS Sensitivity Type: - 10 ± 20 % - mV/g • Measuring range: - ±500 - g • Frequency range: - 0.2-18k - Hz - - Sensitivity Type: - 100 ± 20 % - mV/g • Measuring range: - ± 60 - g • Frequency range: - 0.15-13k - Hz

Catalogs

KS96B10
KS96B10
2 Pages
